| 起源の場所: | 河北中国 |
|---|---|
| ブランド名: | Pangolin |
| 価格: | Negotiable |
| パッケージの詳細: | 顧客の必要性に従って |
| 受渡し時間: | 5-15work幾日 |
| 支払条件: | T/T |
| モデル: | CSJ-FN-60C | 容量（m3/h）: | 60 |
|---|---|---|---|
| スラリー ポンプ力（Kw）: | 11 | スラリー ポンプ圧力（MPa）: | 1.0~2.0 |
| 頁岩のシェーカー力（Kw）: | 2 | 頁岩のシェーカーの振動力（KN）: | 40 |
| スクリーン・サイズ（mm）: | 1700x700 | 円錐形数: | 6 |
| 分離のサイズ（μm）: | 10-30 | 総力（KW）: | 13 |
| システムMax.Size （mm）: | 2000X1600X2250 | システム重量（Kg）: | 1900年 |
| ハイライト: | linear motion shale shaker drilling,mud shale shaker drilling,shale shaker oilfield drilling |
||
Introduction
Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.
We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

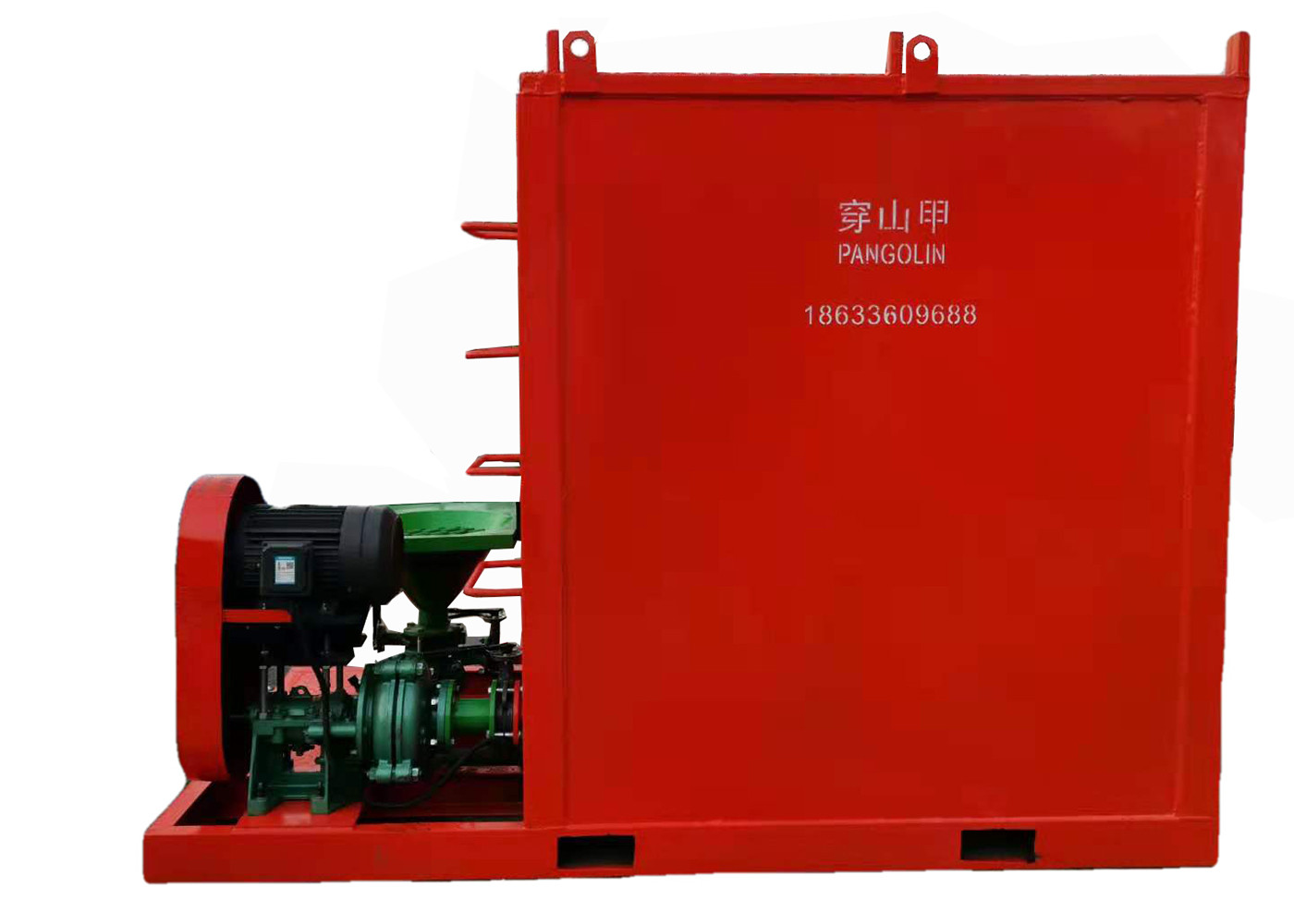

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
